    Description

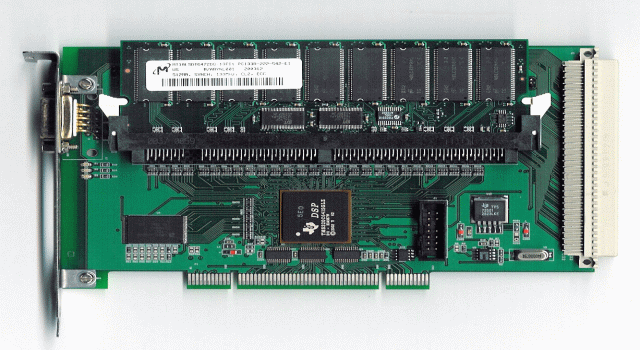

    A generic PCI card containing a DSP, SDRAM memory, an FPGA and a standard DIN41612 connector for expansion modules.

    Currently a 8-channels, 16-bit, 20 MSPS DAC module is available.

    Characteristics

    • Configurable number of differential data channels
    • Maximum rate per channel of 200MSPS
    • Real-time digital signal processing
    • 512MB SDRAM memory, in DIMM format
    • XIlinx XC2V1500 FPGA
